Core | CO2 Pressure Vessels

Supercritical Pressure Vessels

Core Separations CO2 Pressure Vessels (EV Series) are high pressure, high performance extraction and reaction vessels designed specifically for processing supercritical fluids. Using an innovative threaded cap and energised sprung seal, these vessels are designed to be easily opened and closed without tools while remaining safe whilst under pressure. The vessel bodies are made from high quality 17-4PH stainless steel, 60% stronger than 300 series steel. This reduces the weight and wall thickness of these vessels with the added benefit of improving heat transfer.

What Vessel do you need?

Reset

Showing all 10 results

Supercritical Pressure Vessel – EV10

The EV10, part of Core Separations’ EV Mini Series, features a 10 mL volume capacity suited for the smallest sample sizes and is fitted with a 5 µm filter for efficient particulate retention. It is a high-pressure, high-performance extraction and reaction vessel designed for small-scale research, development, and precise sample preparation prior to extract analysis.

Learn more

Supercritical Pressure Vessel – EV25

The EV25, part of Core Separations’ EV Mini Series, features a 25 mL volume capacity ideal for small-scale extractions, reactions, and method development. Equipped with a 5 µm filter for effective particulate retention, it delivers high-pressure, high-performance operation perfectly suited for research, pilot testing, and precise sample preparation prior to analytical evaluation.

Learn more

Supercritical Pressure Vessel – EV50

The EV50, the largest vessel in Core Separations’ EV Mini Series, offers a 50 mL volume capacity. Fitted with a 5 µm filter for reliable particulate retention, it provides high-pressure, high-performance capability ideal for research, development, and advanced sample preparation prior to extract analysis.

Learn more

Supercritical Pressure Vessel – EV100

The EV100, the smallest vessel in Core Separations’ EV Series, features a 100 mL volume capacity ideal for research-scale processing and method development. Designed as a high-pressure, high-performance extraction and reaction vessel, it is perfectly suited for R&D, sample preparation, and process optimisation across a wide range of applications.

Learn more

Supercritical Pressure Vessel – EV500

The EV500, part of Core Separations’ EV Series, features a 500 mL volume capacity and a two-part head design that enhances seal life and serviceability. Engineered as a high-pressure, high-performance extraction and reaction vessel, it is ideally suited for research, development, sample preparation, and process optimisation across a diverse range of applications.

Learn more

Supercritical Pressure Vessel – EV1L

The EV1L, part of Core Separations’ EV Series, offers a 1 L volume capacity and is purpose-built for high-performance extraction and reaction processes. Designed for research and development, sample preparation, and process optimisation, it combines robust pressure capability with precise thermal control, making it ideal for scaling studies and advanced application development.

Learn more

Supercritical Pressure Vessel – EV3L

The EV3L bridges the gap between research and pilot-scale production, delivering larger batch sizes that generate meaningful process data while maintaining a scalable aspect ratio for easy scale-up. Like all vessels in the Core Separations EV Series, the EV3L is a high-pressure, high-performance extraction and reaction platform built to support applications from early-stage development through to process optimisation.

Learn more

Supercritical Pressure Vessel – EV5L

The EV5L is designed for pilot-scale systems that require small material batches to be taken forward into downstream processes. Like all vessels in the Core Separations EV Series, the EV5L is a high-pressure, high-performance extraction and reaction platform, supporting applications from early-stage development through to process optimisation.

Learn more

Supercritical Pressure Vessel – EV10L

The Core Separations EV10L is a pilot-scale extraction and reaction vessel engineered for producing small material batches that can be taken directly into downstream processes. Designed for supercritical CO₂ extraction, sample preparation, and process development, the EV10L offers a reliable bridge from research and development to pilot-scale production.

Learn more

Supercritical Pressure Vessel – EV1K1L

The EVK1LK, part of Core Separations’ EV Ultra-High-Pressure Series, is a 1 L extraction and reaction vessel engineered to operate at pressures up to 1100 bar. Constructed from high-strength 17-4PH stainless steel, it delivers exceptional durability and safety under extreme conditions. Designed for ultra-high-pressure CO₂ processing, the EVK1LK enables enhanced solubility, mass-transfer, and reaction control beyond conventional supercritical ranges, making it ideal for advanced research, material modification, and high-density CO₂ applications.

Learn more

EV-Mini | Products

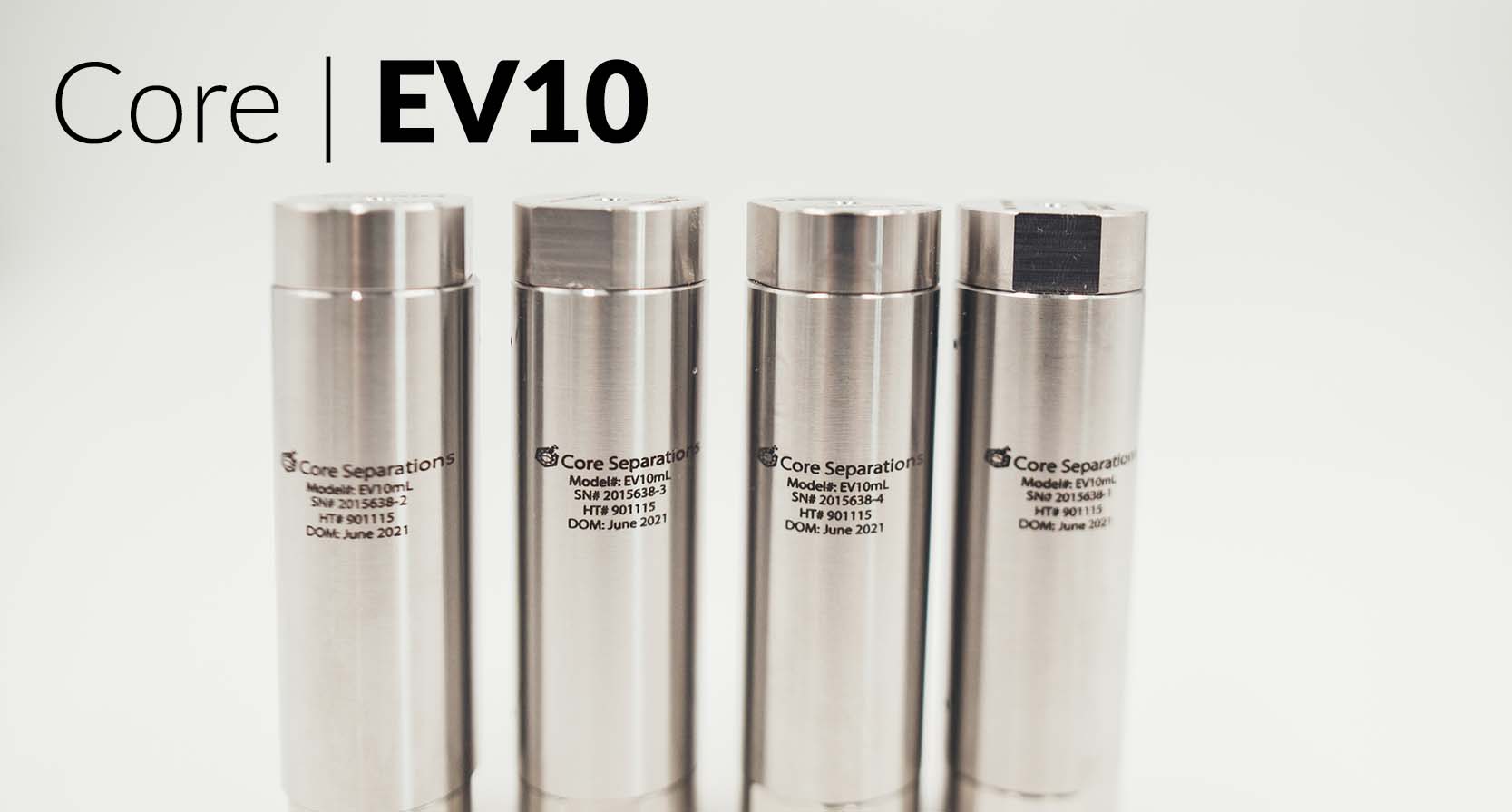

EV10

Volume : 10mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Looking for Waters vessels for the MV10? These are compatible with Pn 205001036.

Servicing

See Features

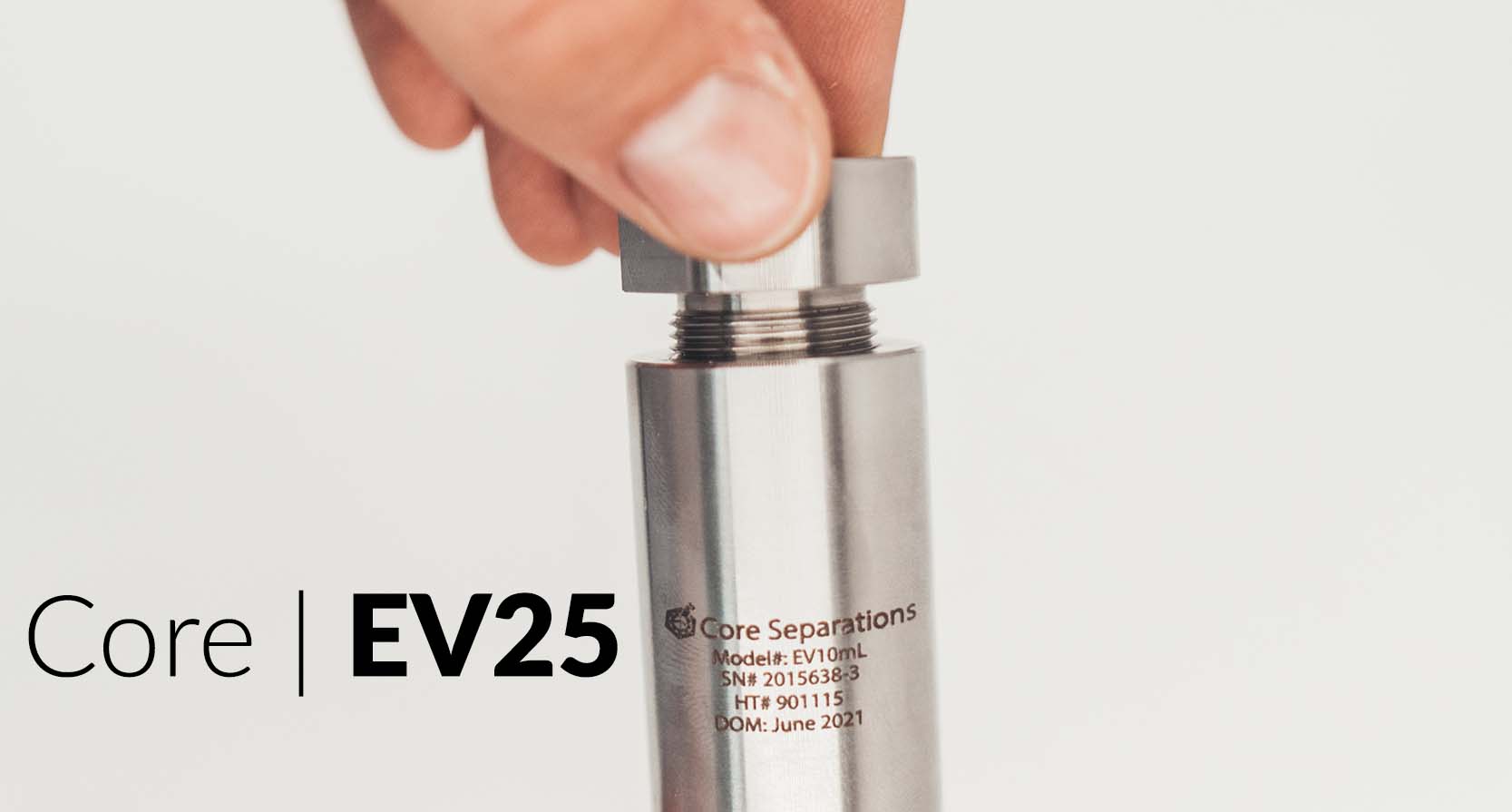

EV25

Volume : 25mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 6.13"

Looking for Waters vessels for the MV10? These are compatible with Pn 205001037.

Servicing

See Features

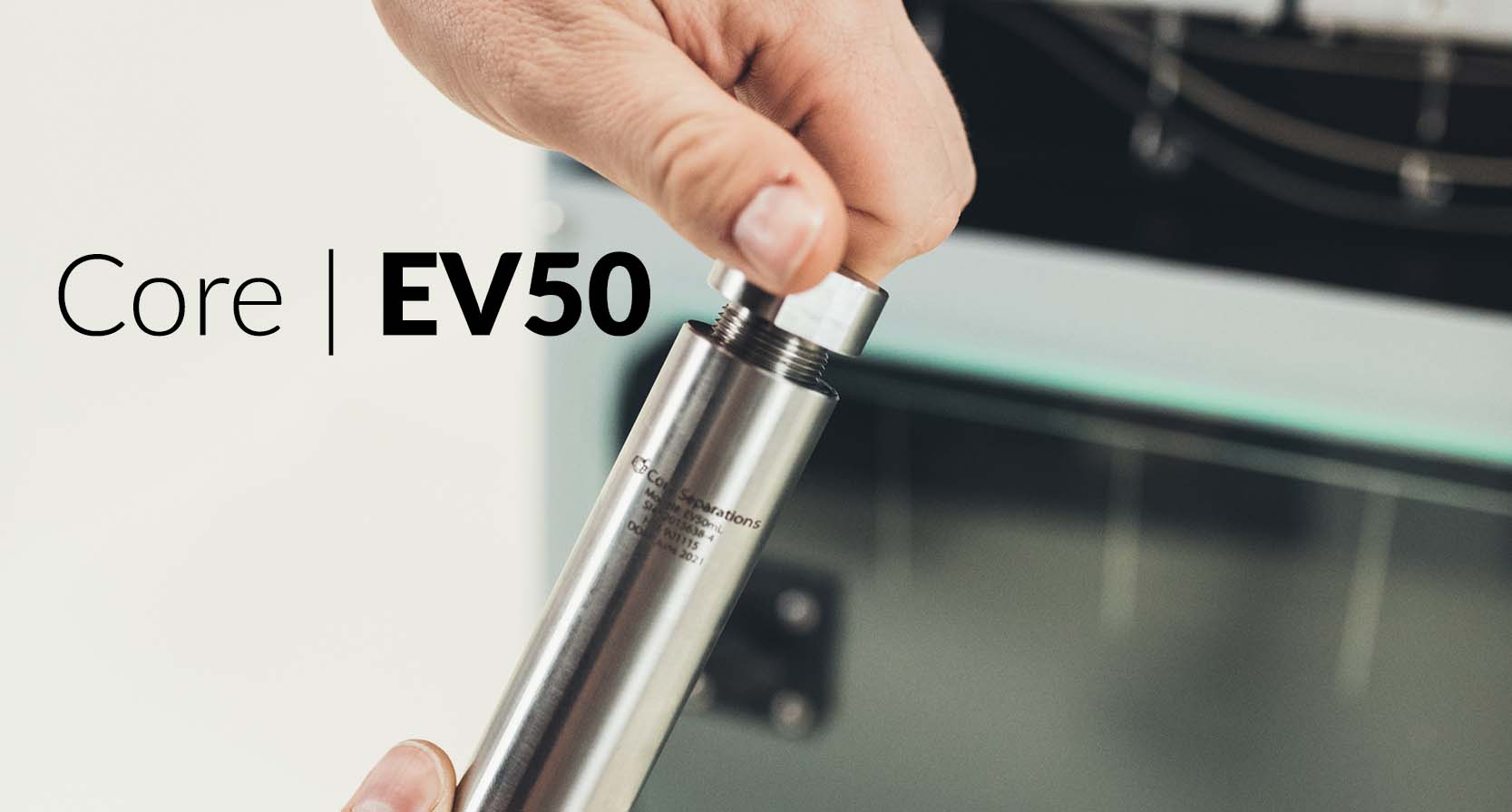

EV50

Volume : 50mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 9.27"

Looking for Waters vessels for the MV10? These are compatible with Pn 205001038.

Servicing

See Features

EV-Mini | Features

1. Double ended Vessels

Double ended design allows for easy cleaning, these analytical vessels are available in a range of sizes from 5-50mL. By utilising the 17-PH for material of construction, these vessels have a high strength and corrosion resistance ideal for higher pressure applications such as supercritical processing.

2. Single Part Cap

A single part threaded cap design utilising an energised sprung seal to retain the pressure. gives our EV-mini series vessels a user friendly tool-less operation for both opening and closing.

3. Replaceable Filter

A screw in filter holder with replaceable filter allows for flexibility when processing different materials with varying particle sizes.

EV Maxi | Products

EV100

Volume : 100mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV500

Volume : 500mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV1L

Volume : 1000mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV3L

Volume : 3000mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV5L

Volume : 5000mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV10L

Volume : 10,000mL
Max Pressure : 689 bar (design)
Max Temperature : 150 degC
Dimensions : ID 0.781"; OD 1.25"; H 4.254"

Servicing

See Features

EV Maxi | Features

1. Material of Construction

Utilisation of 17-4PH with its higher-strength and corrosion resistance compared to 304 and 316SS makes it more cost-effective for higher pressure applications such as supercritical processing.

2. External Threads

Externally threaded body, leaves a smooth internal finish resulting in easy cleaning for both research and cGMP environments.

3. Tool-less design

The two part cap design prevents premature wearing of the energised sprung seal, by allowing the inner cap which houses the seal, to be placed into position without rotation. The threaded outer cap can then be installed without disturbing the seal.

Safety of our Products

Finite Elemental Analysis (FEA)

We take safety of our customers extremely seriously. Our pressure vessels are designed using Section VIII, Division 1 of the ASME Code. This design by formula approach uses a range of rules for calculating wall thicknesses and reinforcement around openings, and other details of a vessel.

To ensure the safety of our products we also apply Finite element analysis (FEA) simulations to predict how our pressure vessels might behave under various extreme conditions and help inform us of predicted life and inspection cycles of our pressure vessels.

The key to safety is knowledge!

Why not learn more about this technique by checking out this blog

analyzeforsafety.com/usage-of-fea-tool-for-pressure-vessel-lifecycle-prediction-in-regard-to-asme-regulations/

Core Separations is not affiliated with this blog site.

EV Maxi | Products

EVK1L

Volume : 1L
Max Pressure : 1100 bar (design)
Max Temperature : 150 degC
Dimensions : ID 4.25"; OD 6.875"; H 18.251"

Servicing

See Features

EV Maxi | Features

1. Material of Construction

Utilisation of 17-4PH with its higher-strength and corrosion resistance compared to 304 and 316SS makes it more cost-effective for higher pressure applications such as supercritical processing.

2. Multi Cap Design

The multi-part design prevents premature wearing of the energised sprung seal, by allowing the inner cap which houses the seal, to be placed into position without rotation. The threaded outer cap can then be installed without disturbing the seal.

3. EV Tec Baskets

EV-Tec series baskets make loading and unloading the pressure vessels quick and efficient, while also reducing manual handling risks. The use a lip seal design for superior sealing while allowing the vessel to be easily loaded and unloaded.

Safety of our Products

Finite Elemental Analysis (FEA)

We take safety of our customers extremely seriously. Our pressure vessels are designed using Section VIII, Division 1 of the ASME Code. This design by formula approach uses a range of rules for calculating wall thicknesses and reinforcement around openings, and other details of a vessel.

To ensure the safety of our products we also apply Finite element analysis (FEA) simulations to predict how our pressure vessels might behave under various extreme conditions and help inform us of predicted life and inspection cycles of our pressure vessels.

The key to safety is knowledge!

Why not learn more about this technique by checking out this blog

analyzeforsafety.com/usage-of-fea-tool-for-pressure-vessel-lifecycle-prediction-in-regard-to-asme-regulations/

Core Separations is not affiliated with this blog site.
